BrainSense Assembly Instructions

Start with the front side, get the wooden front side and the four sensors:

  • RGB LEDs
  • Light Sensor
  • Motion Sensor
  • Temperature & Humidity Sensor

Two screws and nuts for each sensor. Make sure to mount screws like the images attached.

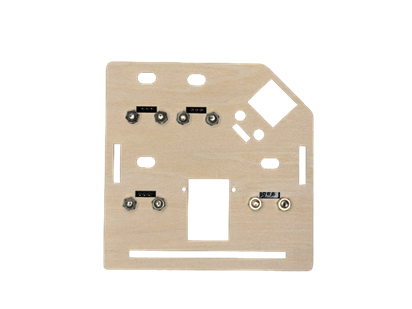

BrainSense sensors after screwBrainSense places to screw sensors

Now, let’s add the servo motor at the back of the home front side, you will need the motor and two screws and nuts.

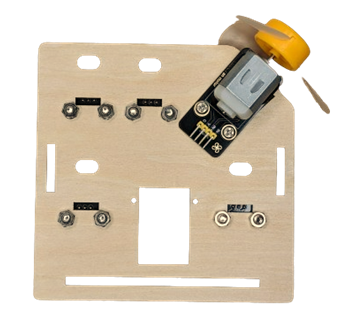

Fan side viewFab other side view

Then, let’s make the two sides of the home, get the two wooden sides parts and the three sensors, each one will need two screws and nuts:

  • Alarm Speaker & Steam Sensor, on the side
  • Flame Sensor, on the other side

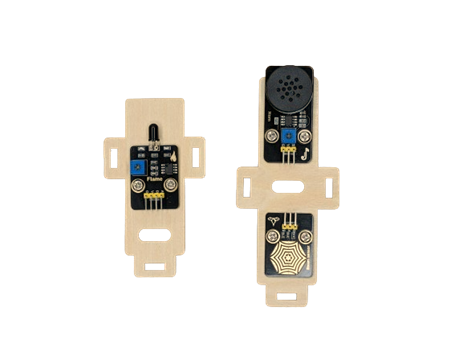

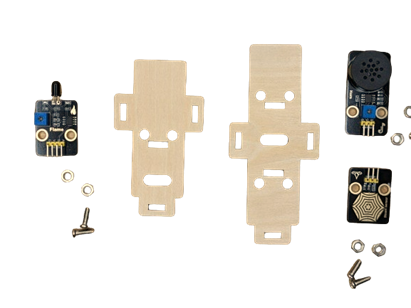

BrainSense alarm/steam sensorsBrainSense alarm/steam sensors attached

After finishing the two sides and the front, bring your Controller Board and two screws and nuts, we are going to start building the back side of the home.

Important step: you need to add nuts between the controller and the wooden side

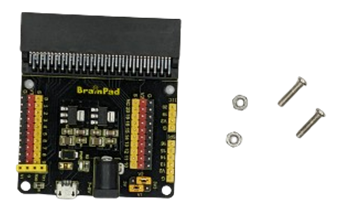

Controller Board front viewController Board back viewController Board side view

Prepare the wooden back side, two nuts, and the controller board.

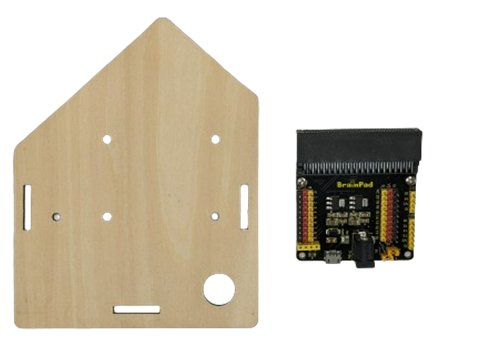

Controller Board next to back of houseController Board attached to back of house

Now, you are going to assemble the two sides with the back side and the bottom

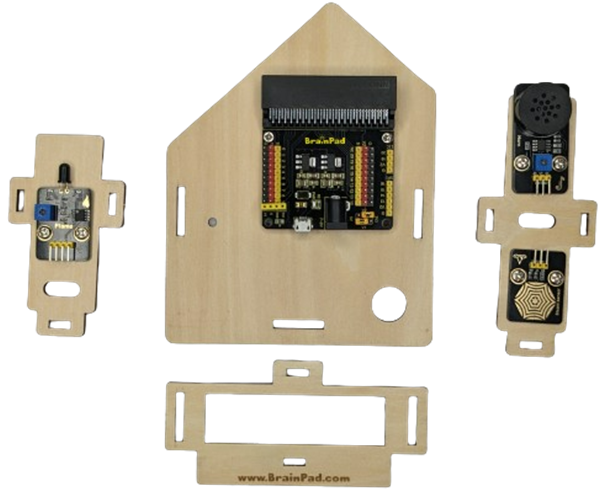

BrainSense two sides back and bottom

Make sure the closing “T” wood lock is the same as the images so the sides are connected together well.

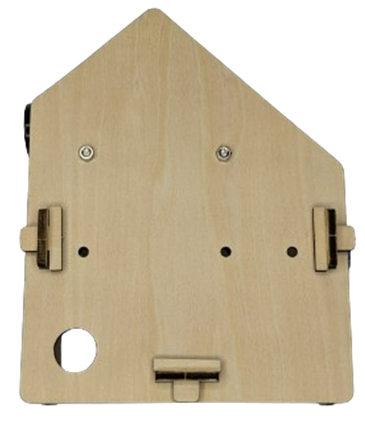

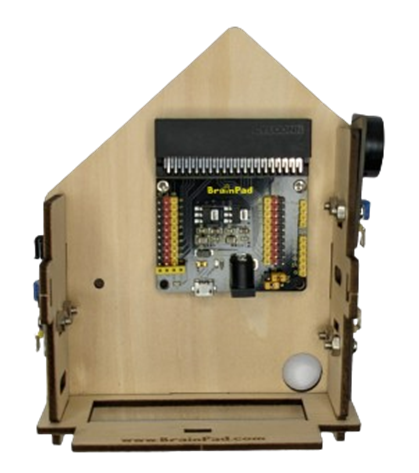

Locking in sides/bottom with back inside viewLocking ini sides/bottom with back backside view

Now, you need to add the Battery Holder on the back of the back side of the home, you will need three nuts and two screws.

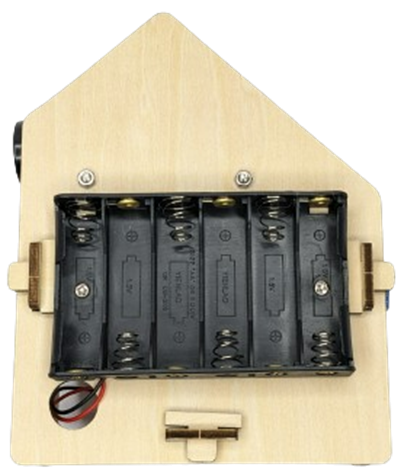

BrainSense attaching battery holder to back

Two nuts will be used with the two screws, and the third one will be added between the controller board and the wood side from inside the home.

And then start plugin the wires:

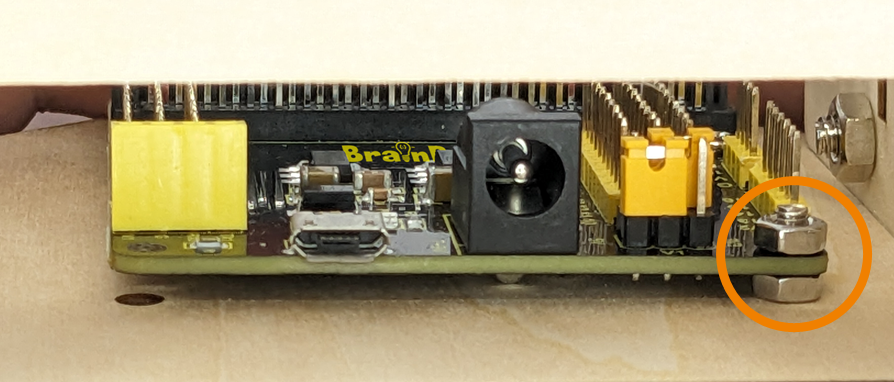

Zoom in on screws for Controller Board

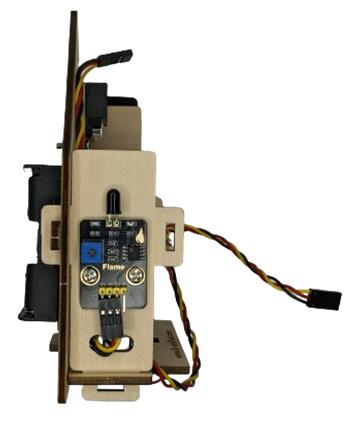

BrainSense inside viewBrainSense side viewBrainSense other side view

To finish this smart home, you need to add the automatic door. Bring the front side and:

  • Servo motor
  • Small wooden part
  • Two small screws and nuts

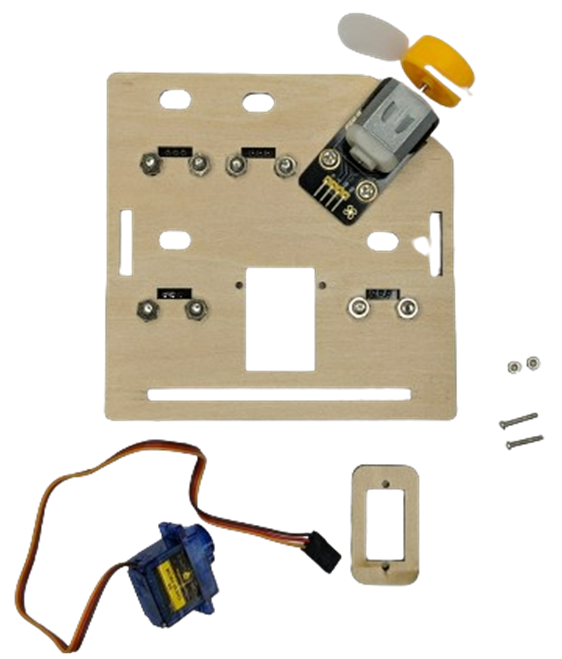

BrainSense inside view of front panel with fan

Add the wooden piece and then the motor, then connect all sensors with wires:

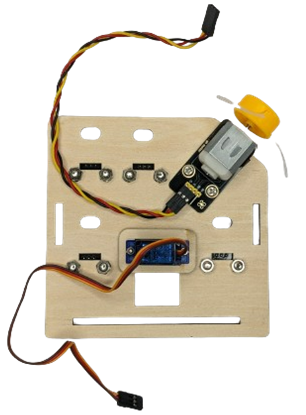

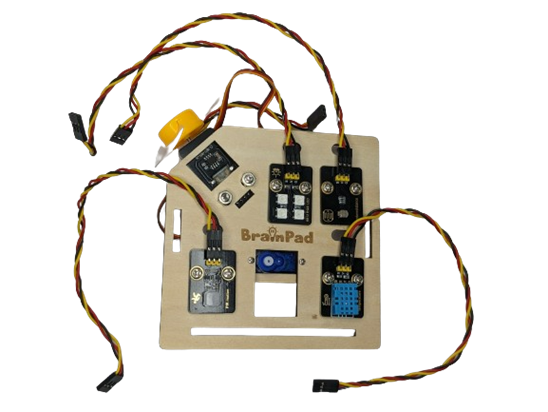

BrainSense front panel inside viewBrainSense front panel outside view

Fit the wires inside the spaces up each sensor, and connect it with the controller board, don’t forget the two sides sensors

Make sure to connect the sensors as follows:

  • Servo PIN 10
  • Fan PIN 11
  • RGB LEDs PIN 12
  • Horn PIN 13
  • PIR PIN 3
  • Flame PIN 4
  • STEAM PIN 5
  • Humid PIN 6
  • Light PIN 0
  • Soil PIN 1

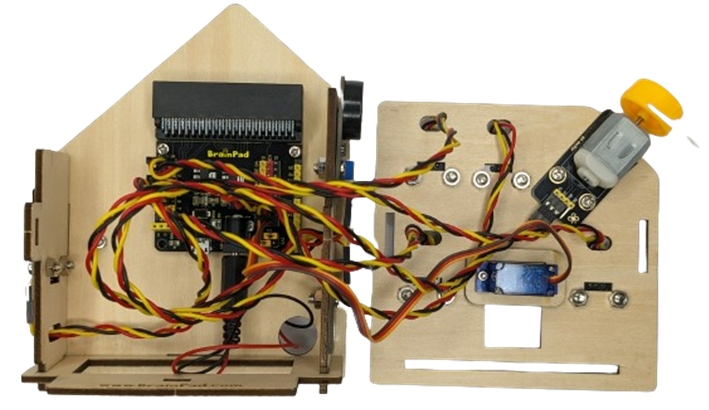

BrainSense wiring

Connect the soil sensor from the small circuit in the home back.

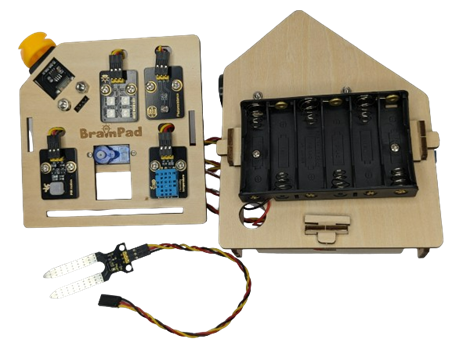

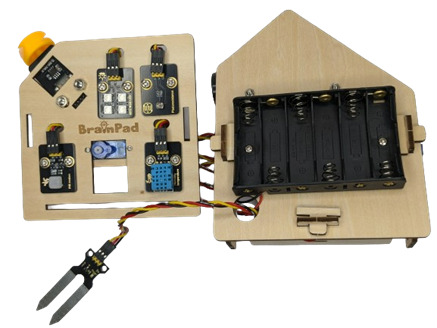

BrainSense with soil sensor not attachedBrainSense with soil sensor attached

Then assemble the front and the rest of the home using the wooden lock.

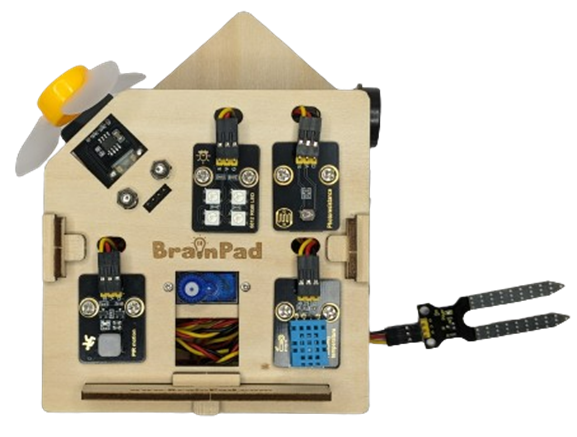

BrainSense assembled with wooden locks

To Install the door, we need the wooden door, one small screw, and a servo adapter.

Connect the servo adapter with the servo motor, and then put the wooden door and stick it with the screw.

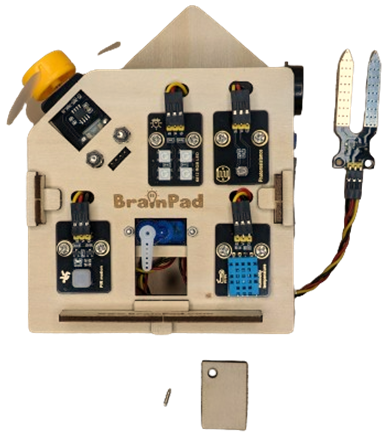

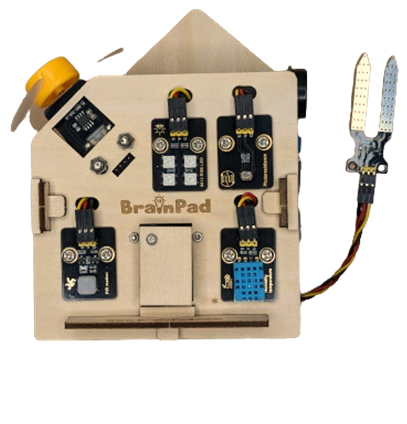

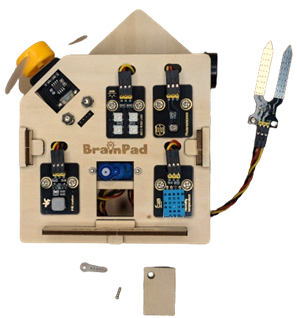

BrainSense with door and servo motor partBrainSense with servo motor part attachedBrainSense with door attached

Finally, choose the Brain you want and start your amazing SMART home journey.

Assembly Complete!​

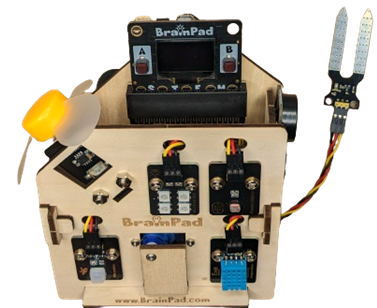

BrainSense completed
