Hardware Reference

This page is a quick reference to the hardware with some additional advanced info.

Pinout

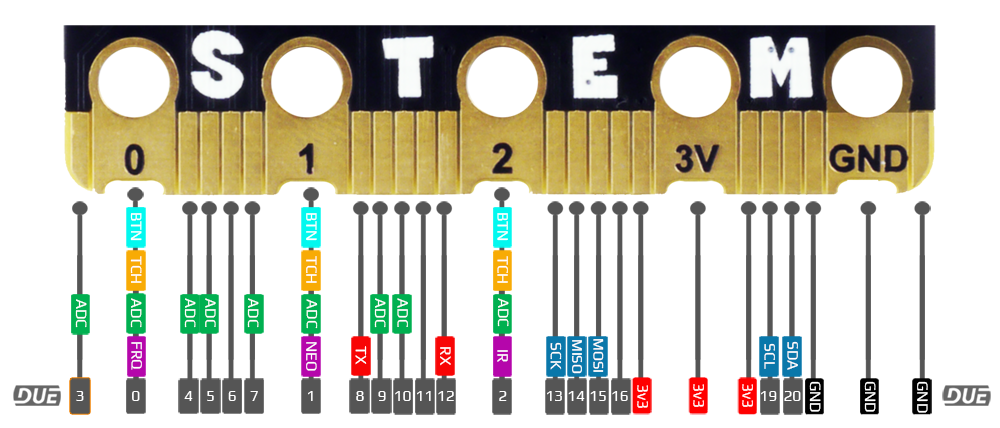

BrainPad Pulse Pinout

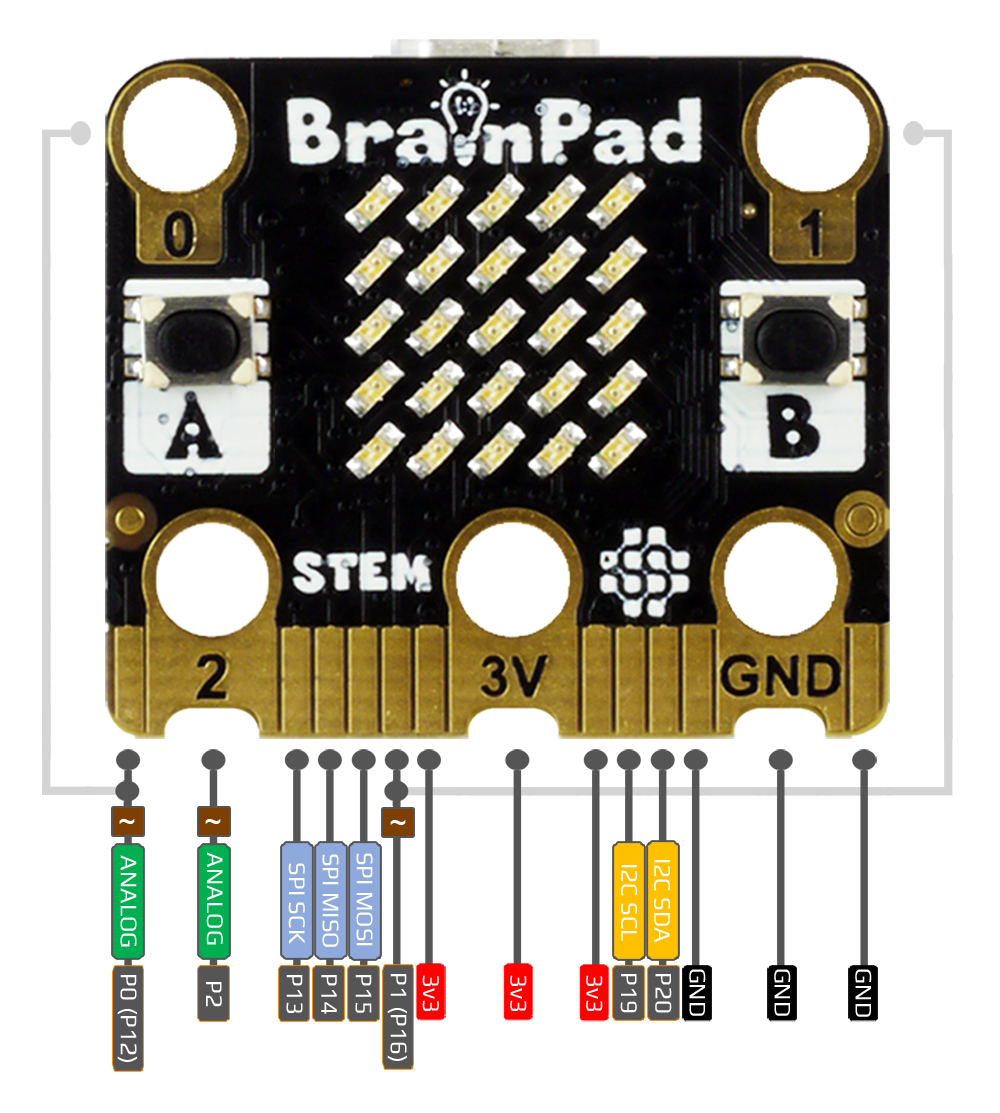

BrainPad Tick Pinout
BrainBot Pinout

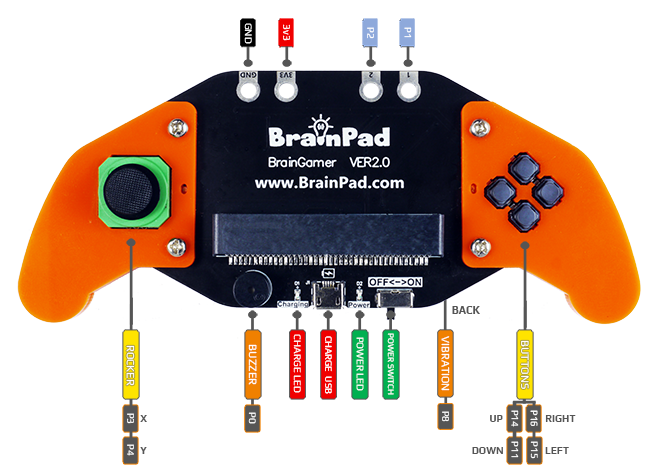

BrainGamer Pinout

Schematics

Advanced users who understand circuits can read the schematics and access the hardware with further freedom.

The schematics are posted on the Hardware Repo on github.
